Breast Implants

Location and type of implant

About 80% of breast implants are for cosmetic augmentation, while about 20% are for breast reconstruction following mastectomy.
Breast implants consist of a silicone outer envelope and a silicone or saline filling.

Capsule
All breast implants will become encapsulated. This can start within weeks to years after implantation.
It is a physiological foreign body reaction of fibrous tissue that will form around the implant.

Breast implants are placed:

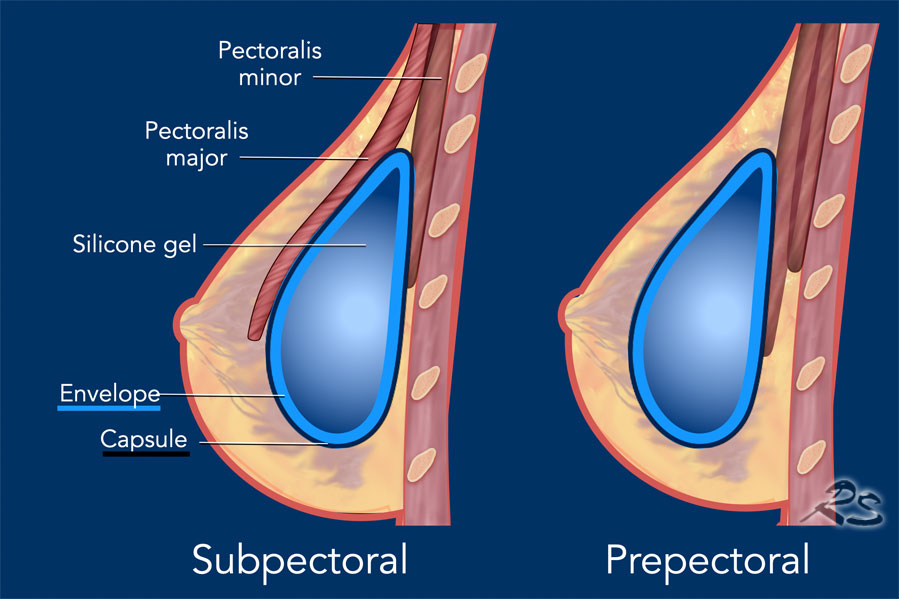

• Subpectoral (retropectoral) between pectoralis major and minor muscles or
• Prepectoral (sub- or retroglandular) anterior to the pectoralis major muscle or
• Dual plane - a combination of both - most of the implant is subpectoral, but the inferolateral part is not covered by muscle.


Subpectoral implant
In this technique, the pectoralis major muscle is elevated from the chest wall.
Palpability of the edges of the implant will be lower in general.
Mammograms are usually less distorted compared to the prepectoral group.

Prepectoral implant
In the prepectoral technique, the implant is placed in front of the pectoral muscle posterior to the glandular tissue.
Rippling is observed as the most common complication.
Mammograms are somewhat more distorted.

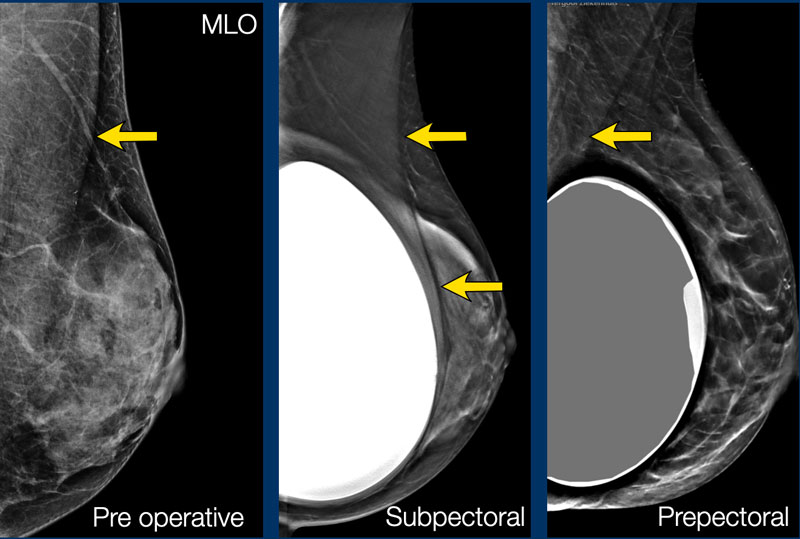

The location of the implant in relation to the pectoral muscle is best recognized on the oblique views.

Silicone filled implants
The most used breast implants consists of an outer silicone elastomer envelope and an inner filling of silicone gel.
The silicone filling has evaluated over the years into a more form-stable mass (figure).

Saline filled implants
Saline filled implants also have a silicone outer envelope. They can be primarily used for cosmetic augmentation or used as breast tissue expanders in reconstructive surgery as a temporary device and gradually filled with saline. Saline filled implants are more prone to trauma resulting in immediate deflation.

Breast implants may be round or anatomically pre-shaped.
The surface of the envelope can be smooth or textured including a polyurethane covering to prevent the implant from turning.
Some implants have a patch, which is a textured area on its surface to keep the implant in place or as a palpable orientation mark for the surgeon.

Imaging findings

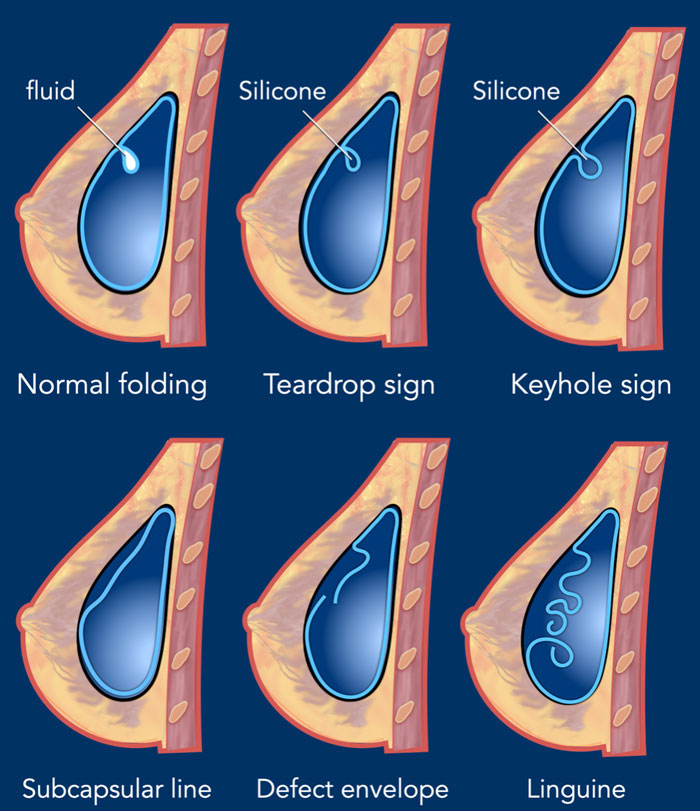

This table summarizes normal and abnormal findings in breast implants.

When the droplet-, noose- or keyhole sign is seen as a single sign on a single image, which is uncommon, then it must be considered as an uncertain finding.

The Linguine sign is most specific for intracapsular rupture.

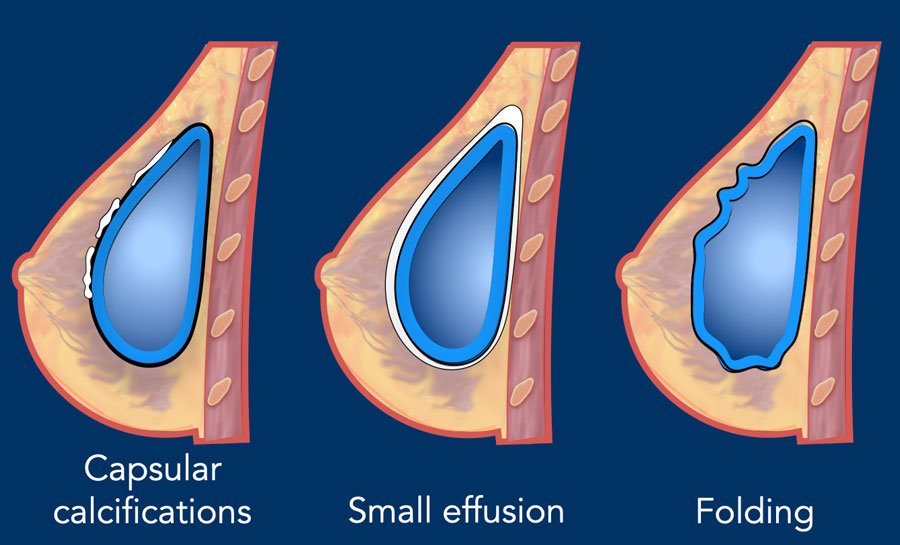

Normal findings

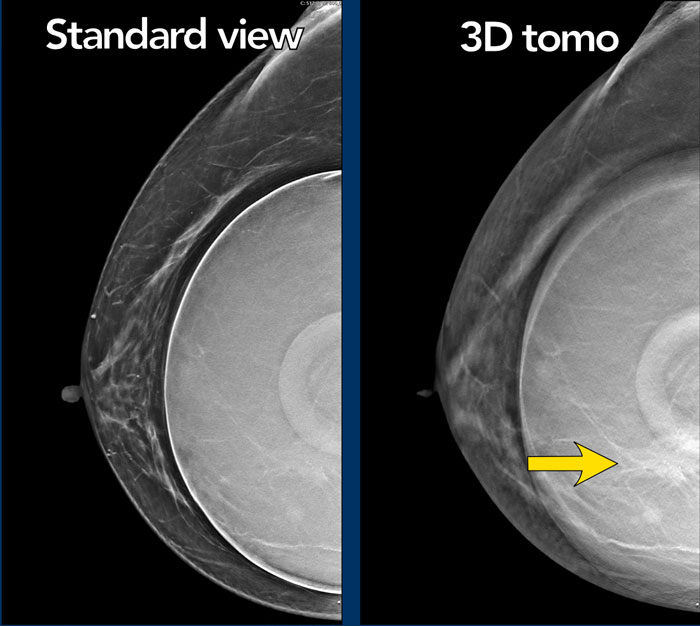

Capsular calcifications
Calcifications can be found in about 25% of the breast implants. The incidence of capsular calcifications increases with age of implants. These calcifications do not indicate rupture, although associated with some degeneration of the envelope.

Effusion
A small amount of periprosthetic fluid is frequently seen and is almost always normal.
However it still can be a seroma, hematoma or infection and must be correlated to clinical symptoms. There is no absolute diameter that should be interpreted as abnormal. Comparing with the contralateral implant can be helpful.

Folding
Palpable folds can occur especially in prepectoral implants with a superficial location in women with few surrounding tissue. These folds can be impressed and pop back at physical examination. Folding is a normal finding.

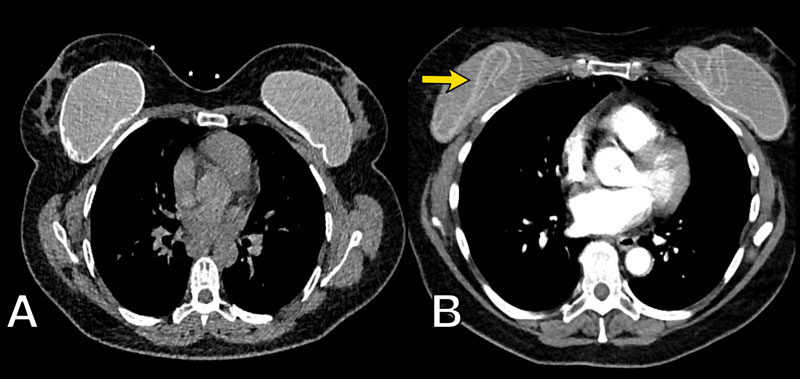

On this axial CT-image there is capsular thickening with severe capsular calcifications.

On the right side there also is an irregular content and some linear lines, which is suspicious for intracapsular rupture.

Degenerative changes

Capsular contraction

The incidence of contraction of the capsule is up to 25% in 10 years and is seen more often in breast reconstruction than in cosmetic breast augmentation. The capsule will become thick and hardens, the implant shape will usually become rounder and less compressible.

Droplet sign

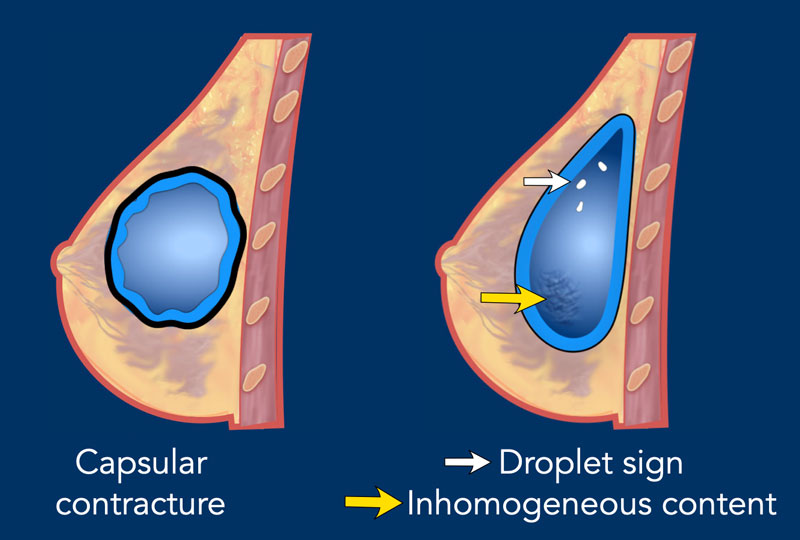

The droplet sign and inhomogeneous content are degenerative changes that may indicate intracapsular rupture, but are not definitive proof of rupture.

Intracapsular rupture

An intracapsular rupture occurs when the shell of the implant ruptures but the fibrous capsule formed by the breast remains intact.
Silicone does not freely extravasate, but is stuck between the capsule and the envelope.
This makes it difficult to detect on clinical exam or mammography. There are many signs described that indicate intracapsular rupture, but it all comes down to silicone between the capsule and the envelope.
Intracapsular rupture is best seen on MRI.

Teardrop sign
It is a focal invagination of the silicone envelope where the two walls do touch. A small amount of silicone is within the teardrop, which means that it is outside the envelope.

Keyhole sign
Also known as nose-sign. It is a focal invagination of the silicone envelope where the two walls do not touch. A small amount of silicone is within the keyhole and outside the envelope.

Linguine sign
The ruptured envelope appears as curvilinear lines that look like Linguine pasta.

These signs of intracapsular rupture need to be differentiated from normal folding which may contain some fluid, which is normal periprosthetic fluid (figure).

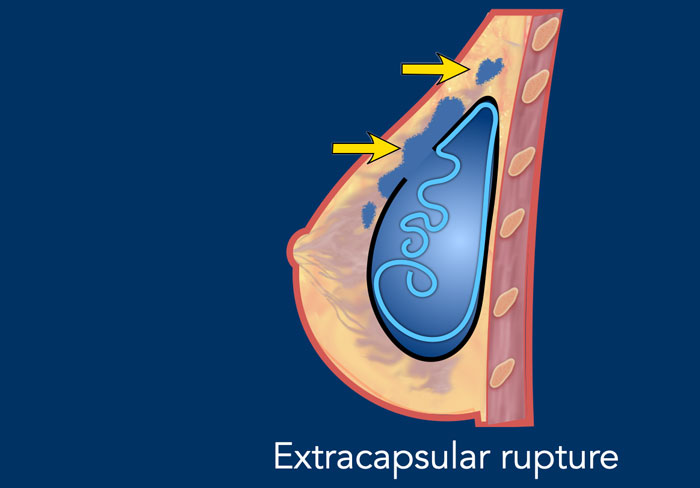

Extracapsular rupture

In extracapsular rupture the silicone from the ruptured implant migrates freely beyond the envelope and the fibrous capsule into the surrounding breast tissue.

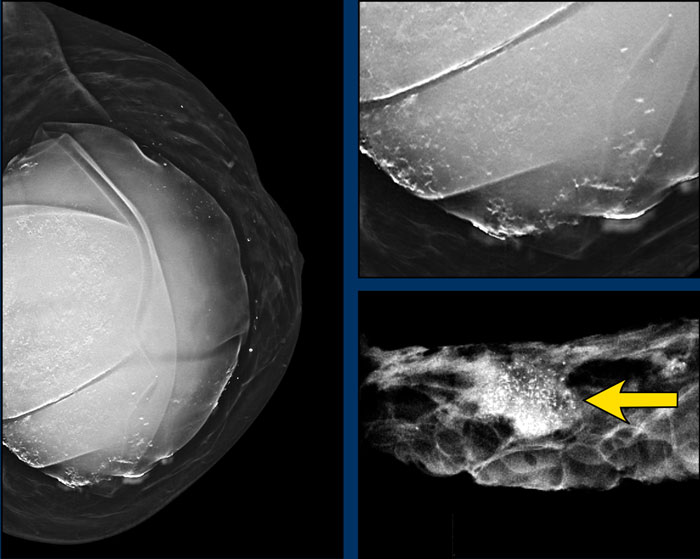

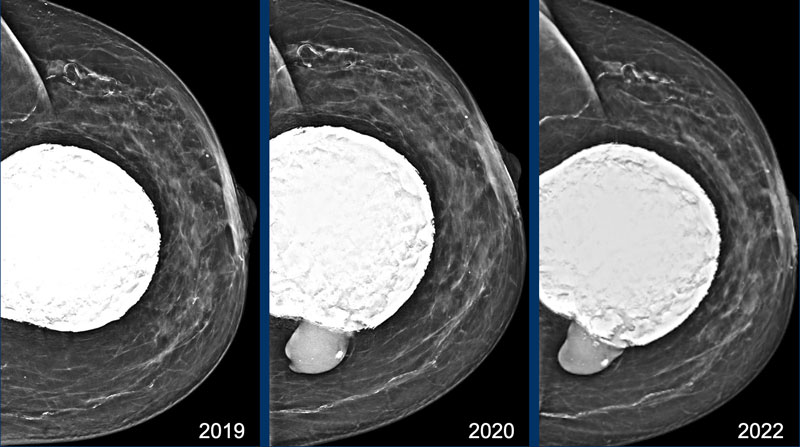

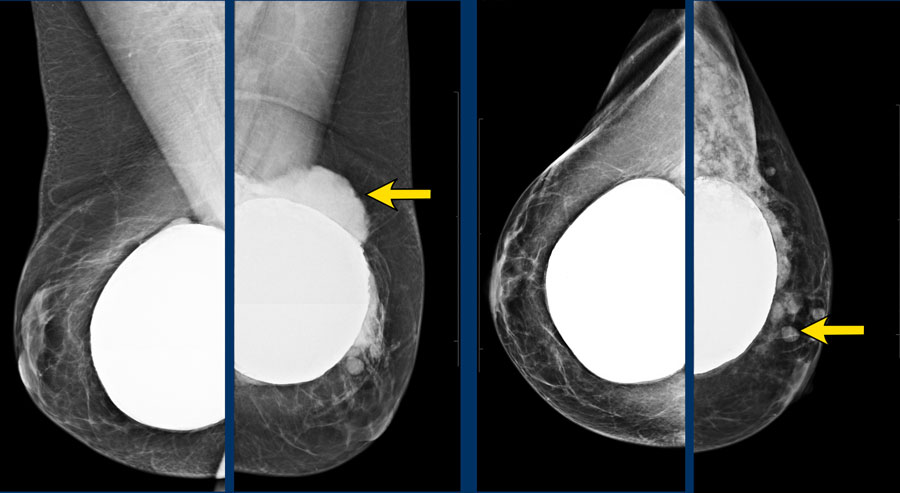

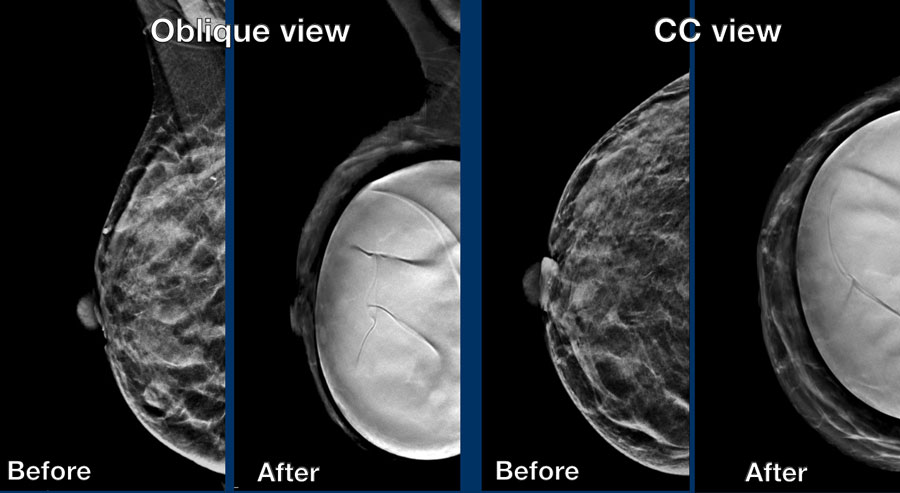

In 2019 the mammogram shows extensive capsular calcifications and a very round shape of the breast implant.
This indicates a contracture of the implant.

At follow up in 2020 the contour has changed and now there is silicone beyond the capsule, which is a definitive sign of extracapsular rupture (arrow).

This elderly patient did not not want surgery, but only wanted screening for possible malignancy.

In 2022 at follow up exam not much has changed. Modern Silicone gel is more cohesive and has less tendency to spread.

Reporting

When you examine the patient with ultrasound, mention the degree of evaluability.
The condition of the implant can be obscured by capsular calcifications or the posterior border can be hard to see in big volume of implant.

No Bi-Rads classification in the MRI report as the protocol is not able to detect breastcancer.

Normal findings

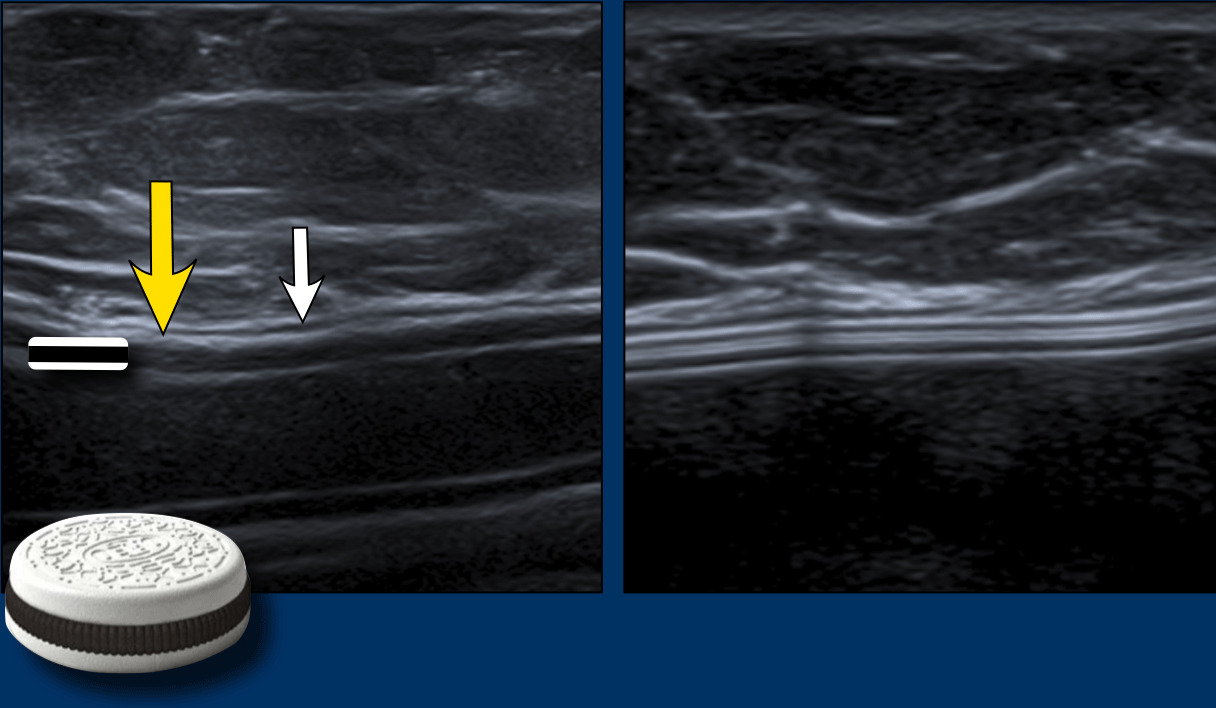

Inverted Oreo sign
The envelope of the prosthesis can be seen as an inverted Oreo cookie. The first white line is the outer interface of the envelope and the second white line is the inner interface between the envelope and the Silicone gel (yellow arrow).
In between the outer layer of the envelope and the surrounding capsule there is a virtual space that can fill and broaden.

The capsule is seen apart from the envelope as a separate white line anterior to the envelope (white arrow).

Envelope and capsule together are called envelope-capsule complex.

The location of breast implant is best evaluated in the upper lateral quadrant. Look for the pectoralis muscle in relation to the implant.
The lower part of implant is usually not completely covered by the pectoralis muscle.

This is a breast implant in subpectoral position.

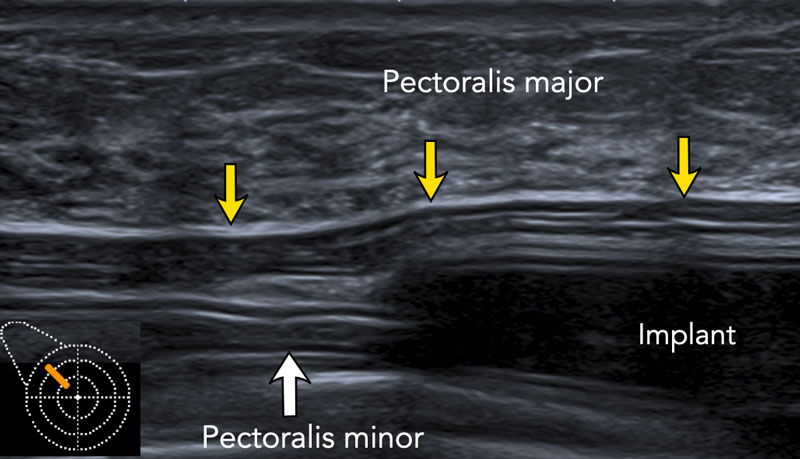

The pectoralis major is seen anteriorly to the implant.
More caudally the major pectoralis muscle thins and will be more difficult to see.

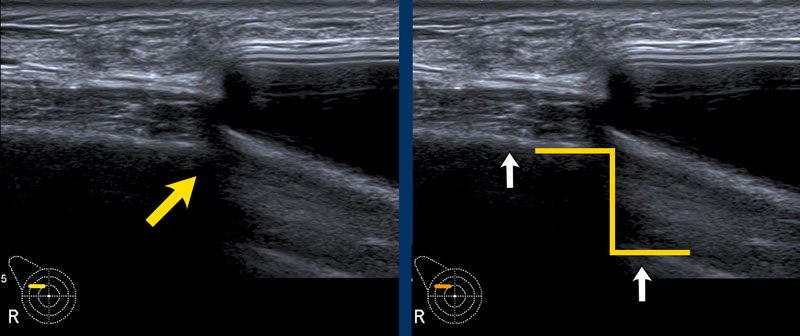

Step off sign

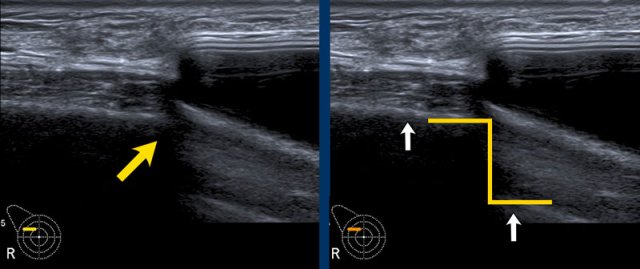

The step off sign is an artefact caused by a lower transmission speed of the ultrasound waves through Silicone ( 970m/sec in Silicone gel and 1540m/sec through water).
As a result the chest wall seems to be deeper at the level of the prosthesis.

This artefact is not seen in saline filled implants.

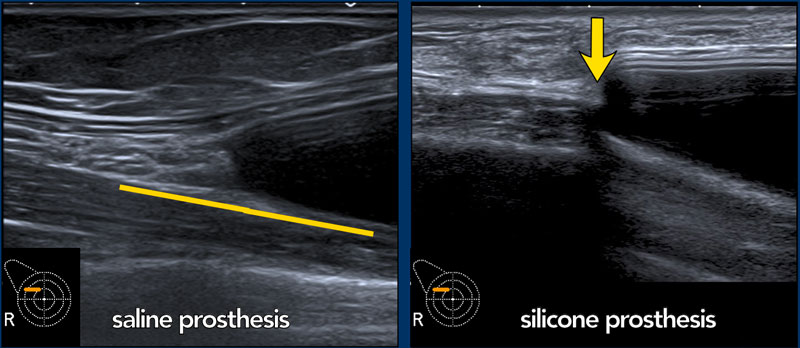

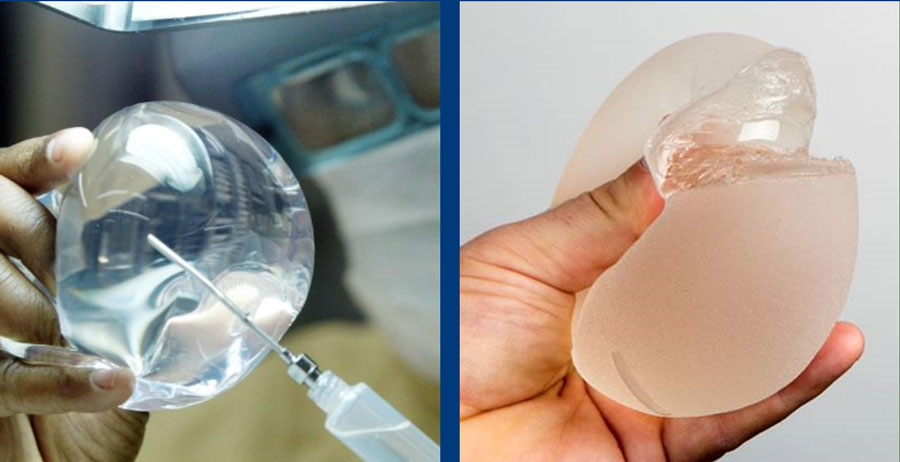

Here you can see the difference between a saline and a silicone prosthesis.

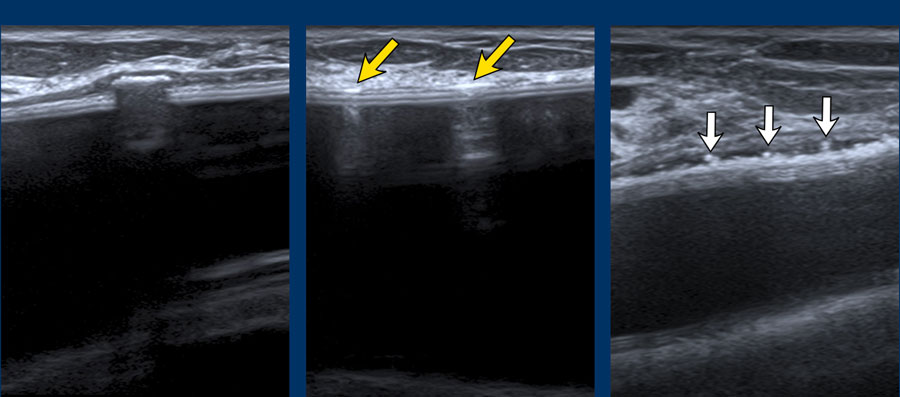

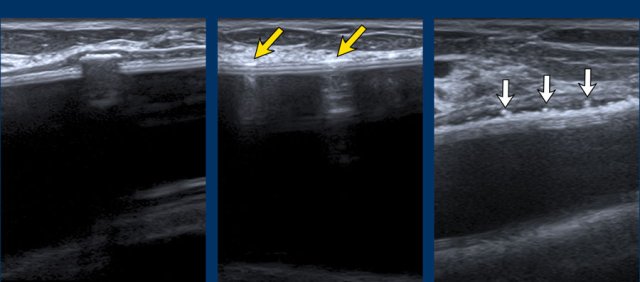

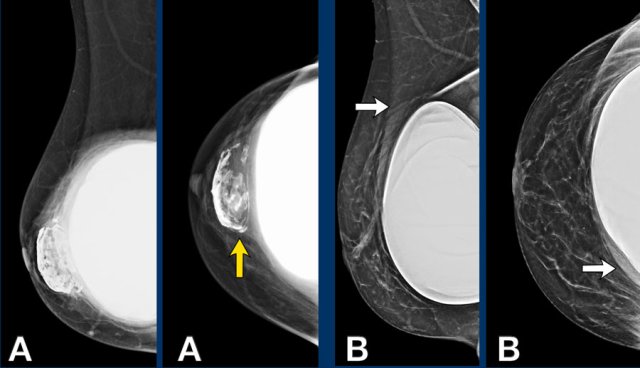

Capsular calcifications
Capsular calcifications can be single or multiple.
Sometimes they are linear or diffuse and thick.

Reverberation artefacts

In the anterior area of the prosthesis frequently parallel horizontal echogenic lines can be seen caused by reverberation artefacts.

These artefacts  can be reduced by using less pressure with the transducer or by using harmonic imaging.

Diffuse somewhat inhomogeneous internal aspect of BI can be seen, also short after operation. So this aspect without other signs of complications does not indicate definite intracapsular rupture.

Sometimes when there is a thick layer of calcifications it may mimic the snowstorm artefact, which is caused by extravasated silicone gel.

Images
On the left intense calcifications.
On the right snowstorm artefact caused by extracapsular leakage of silicone gel.

Images

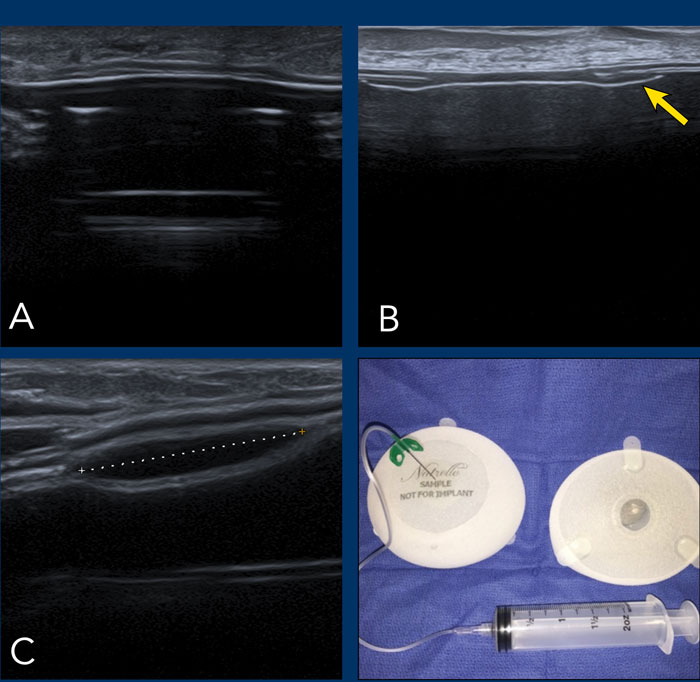

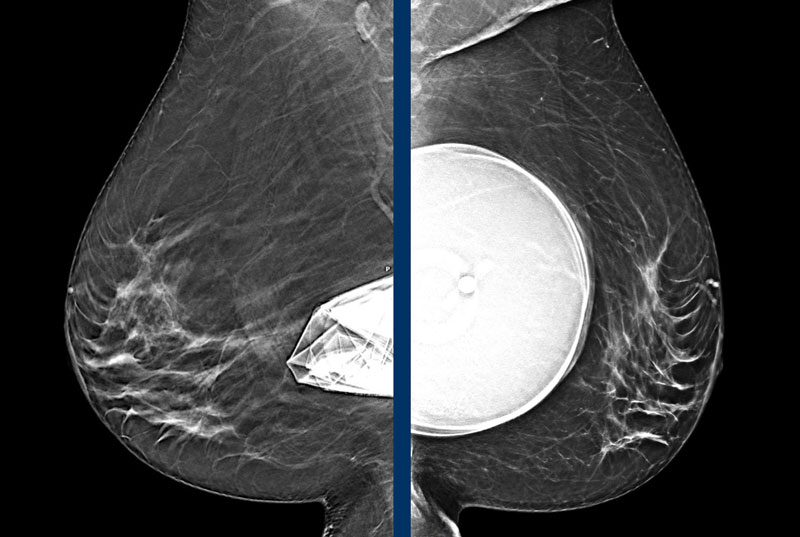

A. Saline implant with a fill valve

B. Symmetrical sharp deliniated and centrally located diaphragm that simulates an atypical appearance of the envelope.

C. Different type of reservoir.

Markings

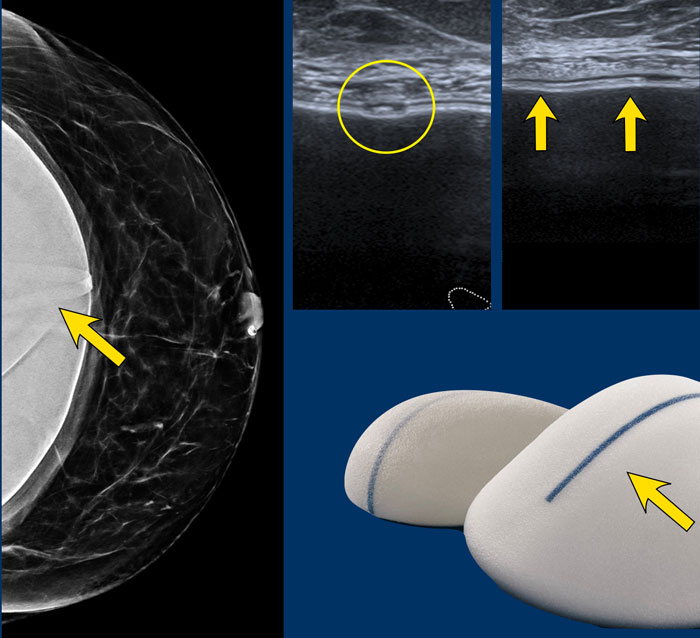

Mammography showing a breast implant with a small circular band.

On ultrasound it is recognized as a linear structure by looking in two planes (circle on axial scan and arrows on sagittal scan).

It should not be confused with a problem of the envelope.

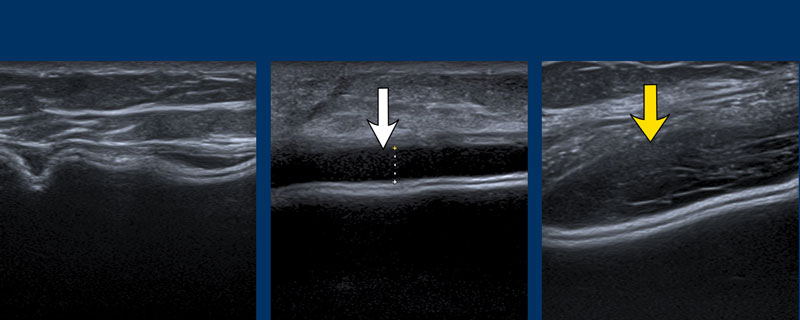

A small amount of anechoic periprosthetic fluid is normal (image far left).

Increasing amounts of effusion or more echogenic fluid can be punctured for investigation, depending on clinical findings.

Folding

Folds are seen in many forms. They are dynamic.
When turning outwards they are sometimes palpable, especially at the edges of the breast implant and at locations where there is little tissue between the implant and the skin.

These folds are normal findings.

Radial folds

Deep linear or curved lines within the implant can be hard to call.

Are they inner radial folds or part of a collapsed envelope as a result of intracapsular rupture? Try to look for more signs and follow the line to look for continuity with the envelope.

In some cases MRI is needed to solve this problem.

Intracapsular rupture

When the envelope ruptures, but the capsule stays intact, it is called intracapsular rupture.
The Silicone does migrate between the envelope and the capsule, but does not migrate into the breast tissue or beyond.

Signs to look for are:

• Subcapsular sign: Parallel lines within the content of the breast implant, not following the outer envelope-capsular complex.

• Stepladder sign: More layers of parallel lines within the content of the implant.
  This sign is similar to the Linguine sign as seen on MR.

• Snowstorm artefacts outside the envelope

Stepladder sign

US can detect intracapsular rupture by identifying a series of horizontal echogenic straight or curvilinear lines, somewhat parallel, traversing the interior of the implant, commonly known as the “stepladder sign”.

It is important not to confuse the stepladder sign with normal prominent radial folds.

Images
More examples of the “stepladder sign”.

In this patient heavily capsular calcifications did obscure the condition of the prosthesis.
However when looking from a different angle it was obvious that there was a stepladder sign indicating rupture.

Due to the widespread calcifications, it was not sure whether it was only an intracapsular rupture or also some extracapsular leakage of Silicone.

A. The envelope can no longer be found around the surface of the implant. The inner content is complete inhomogeneous and degenerated.

B. The envelope is collapsed (yellow arrow) and does not follow the outer envelope-capsular complex (white arrow).
There is an inhomogenous collection between the envelope and the capsule containing Silicone. .

Extracapsular rupture

Extracapsular silicone implant rupture is defined as rupture of both the implant shell and the fibrous capsule with macroscopic silicone leakage that extends beyond the fibrous capsule into the surrounding breast tissue and beyond.

The Silicone which is beyond the capsule causes an acustic shadow called "snowstorm" or "dirty shadow" (figure).

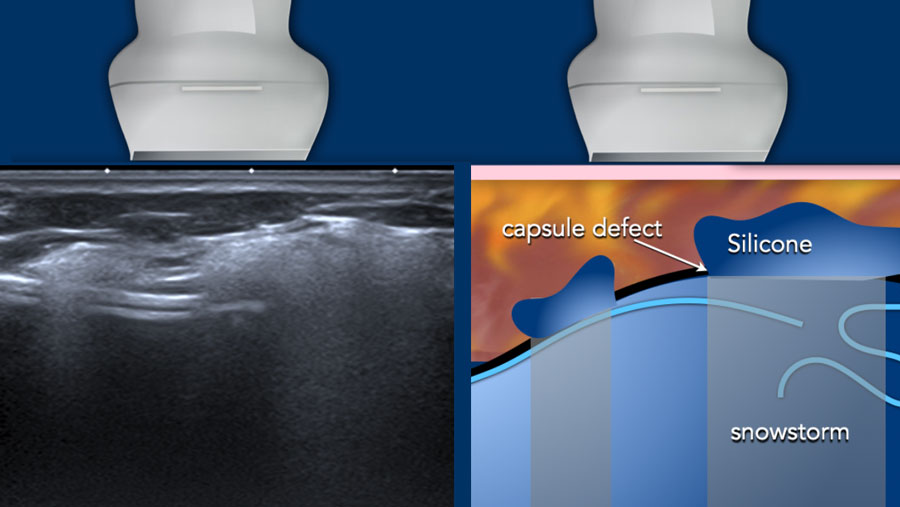

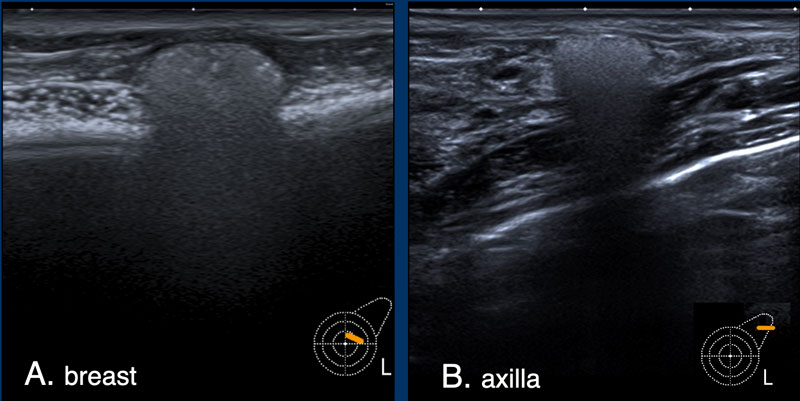

A. There is free Silicone visible outside of the envelope/capsular complex. This is a sign of extracapsular rupture. However there were no other signs of rupture of the prosthesis.
This probably is a Silicone deposit of an older implant that was removed because of extracapsular leakage.

B. The snowstorm sign in an axillary lymph node is highly specific for Silicone deposition in the lymph node.
US is more sensitive than MRI in finding these lymph node deposits.

Protocol

MRI is the gold standard for evaluation of the integrity of the breast implant with a sensitivity of 80-90% and specificity of 90-97% for detecting ruptures.

It has a high spatial resolution and the ability to suppress or enhance the signal of Silicone, water and fat.
A combination of sequences can be used to detect complications.
Gadolinium i.v. is not needed.

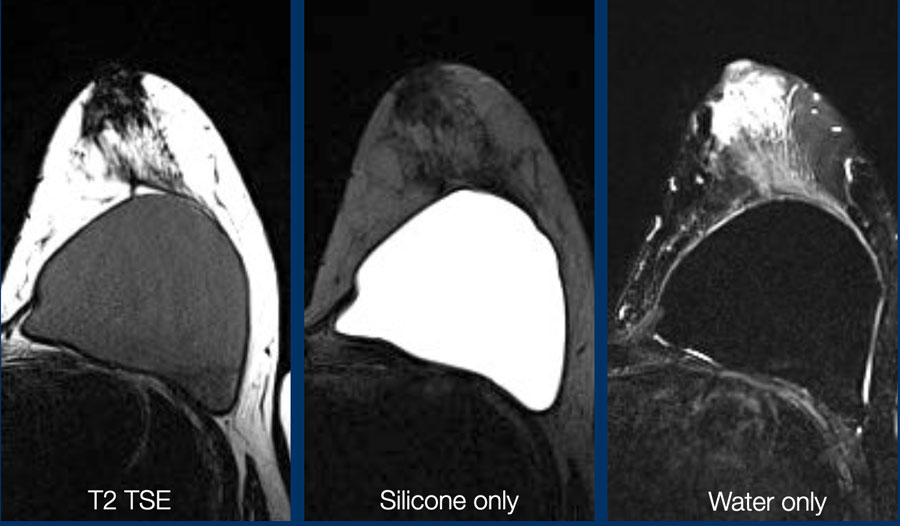

T2W-images
These are best for studying the anatomy and provide high resolution. They also give information about lymph adenopathy.

Silicone-only-images
These are STIR-images, in which fat is suppressed, combined with water suppression. As a result there is only signal of the silicone material. This sequence is ideal for studying rupture of the envelope and detecting silicone outside the envelope or outside the capsule.

Water-only-images
A combination of fat saturation and silicone suppression gives information about fluid collections within or around the prosthesis.

Normal findings

Small effusions are commonly seen.
They have a different signal intensity than Silicone and should not be confused with the keyhole sign.

The T2W-image shows an effusion filling the virtual space between the envelope and the capsule. This is a normal finding.

The T1W-image shows a hypointens thickened capsule. The capsule will show hypointense on any sequence.
The contour of the implant is more rounded, which indicates capsular contraction.

Although signs of contraction can be well seen on imaging, the degree of contraction is estimated by physical exanination.

Radial folds are infoldings of the envelope extending from the surface into the gel content.
This is also a normal finding.
The content within the fold-lines should not contain Silicone.

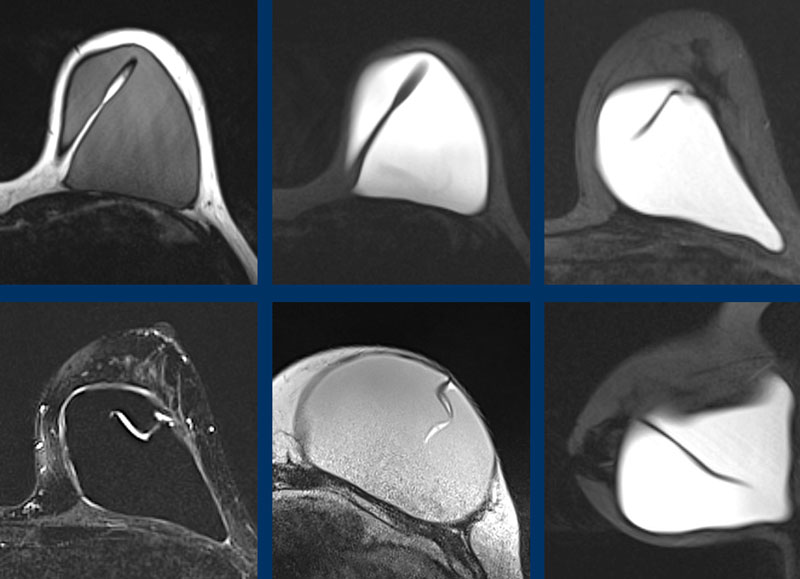

More normal radial folds.

Here more examples of normal infolding of the envelope.
There is no silicone content within these folds.

Another example of an extensive deep course of normal radial folds.

Water droplet sign

Multiple small round internal drops with fluid signal within the silicone gel can be a sign of degeneration.
However there should be more signs to consider a possible rupture.

Intracapsular rupture

When there is silicone within a fold, then it is a sign of intracapsular rupture.

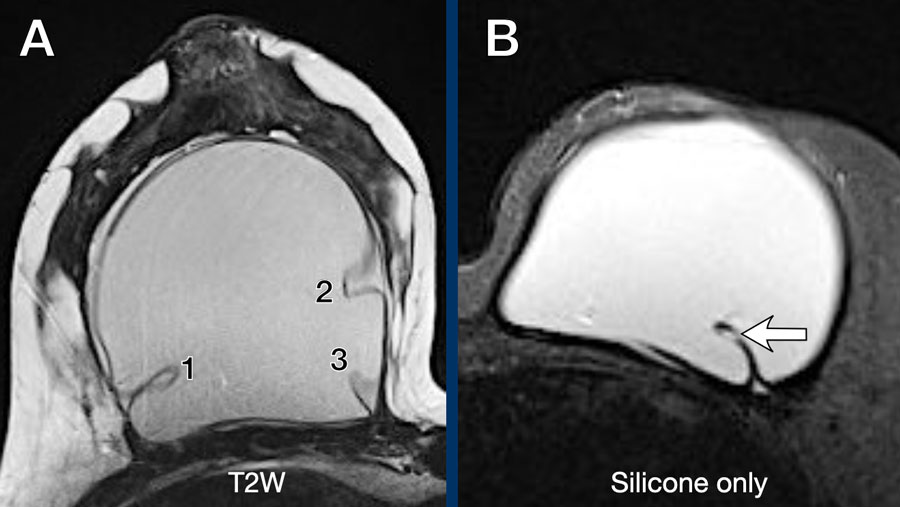

The images show:

• Teardrop sign: where the walls touch each other (1).
• Keyhole or Noose sign: different shapes, the walls do not touch each other (2-3).

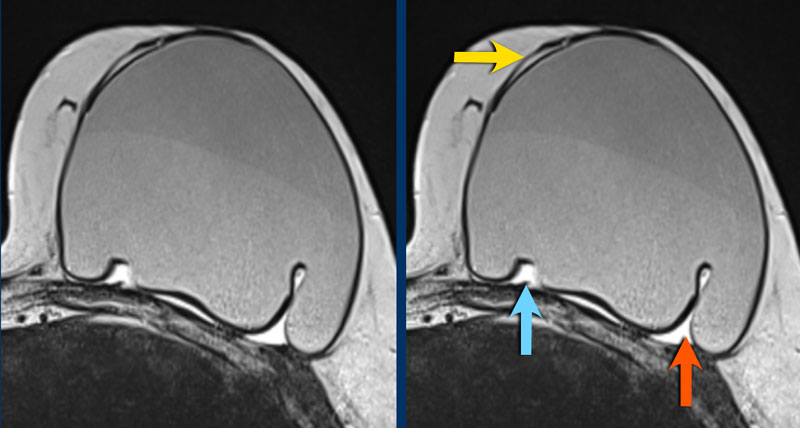

Here another example of the different presentations of intracapsular rupture with silicone outside the envelope, but within the capsule.

• subcapsular line (yellow arrow)
• nose sign (blue arrow)
• teardrop sign (red arrow)

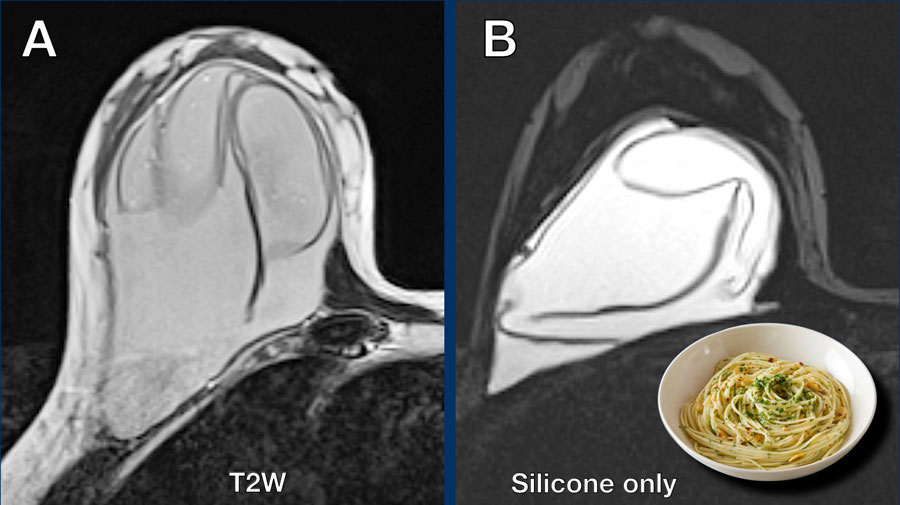

Linguine sign

This is the most reliable sign of intracapsular rupture.
The curvilinear lines which are formed by the ruptured envelope resemble Linguine pasta.

First study the image and answer the following question:

1. Which signs do you see.
2. How suspective is each of these findings for rupture?



Then scroll the image.

• Green: degenerative but not a sign of rupture.
• Orange: suspective of intracapsular rupture but not a definitive sign. You need other sequences to determine whether it is Silicone.
• Red: Linguine sign - proof of intracapsular rupture.

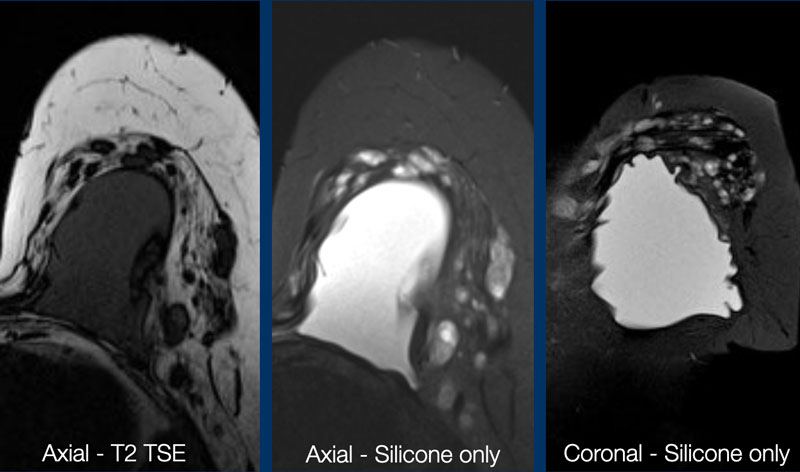

Extracapsular rupture

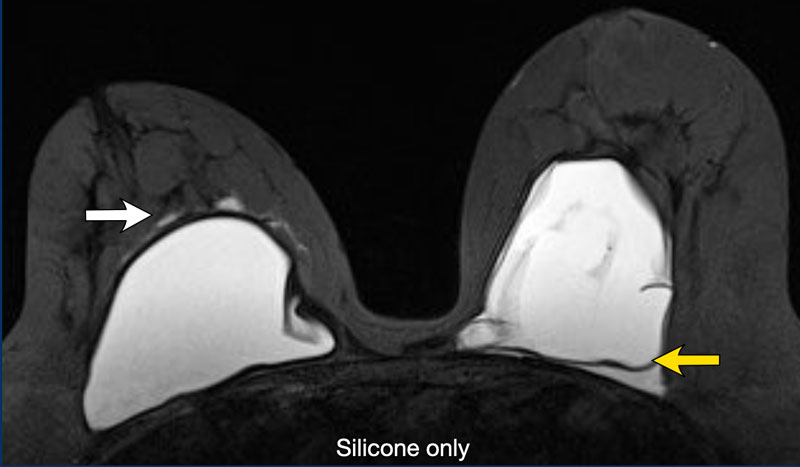

This woman has an extracapsular rupture on the right with silicone outside the thickened capsule (white arrow).

In the left breast there is an intracapsular rupture indicated by the subcapsular line with silicone on both sides of the line (yellow arrow).

Another example of extracapsular rupture with silicone outside the capsular border.

This patient had bilateral removal of the breast implants.
On the right there is high signal of silicone material in lymph nodes (white arrow).

On the left there is residual silicone anterior and posterior to the major pectoralis muscle (yellow arrow) and also within the muscle.

When a new silicone prosthesis is implanted, this residual silicone should not be interpreted as extracapsular leakage of the new implant.

Anaplastic Large Cell Lymphoma

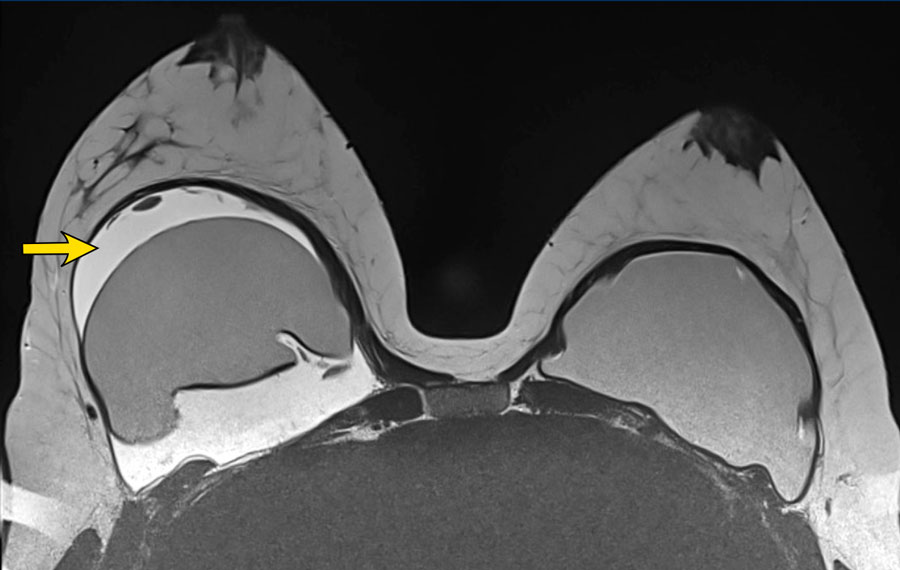

BIA-ALCL or breast implant associated anaplastic large cell lymphoma is an important complication to know of silicon-filled and saline-filled breast implants.

BIA-ALCL develops primarily if not exclusively in patients with textured implants.
The estimated prevalence in these implants is 1:30.000.
Most BIA-ALCL were seen in Allergan Biocell textured breast implants and they were subsequently taken off the market.

Two-thirds of individuals with BIA-ALCL present with discomfort and swelling due to the development of periprosthetic effusion (85%) in which atypical lymphoid cells are found. Sometimes associated with a mass in 15% of cases.

Any late onset unilateral effusion or mass should be punctured and analyzed.

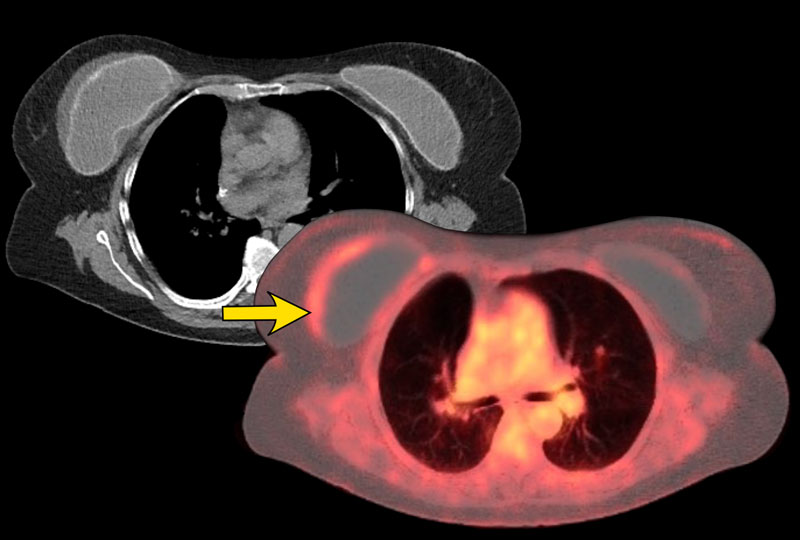

Staging is with PET-CT, like in any other lymphoma.

Most patients present with Stage 1.
The treatment is surgical excision of the implant, capsule and mass if present.

Outcome is favorable when early treated.

Chest X-Rays and CT do not play a role in examining breast implants.

Sometimes they can be detected on X-rays for instance when there are capsular calcifications or when a  filling valve of an expandable prosthesis is seen (arrow).

Also on CT sometimes complications can be seen, but usually CT does not give adequate information about the integrity of the prosthesis.

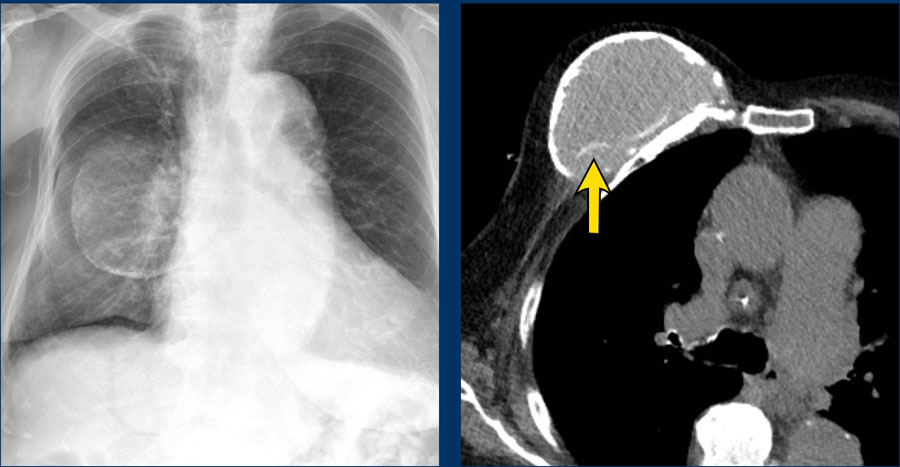

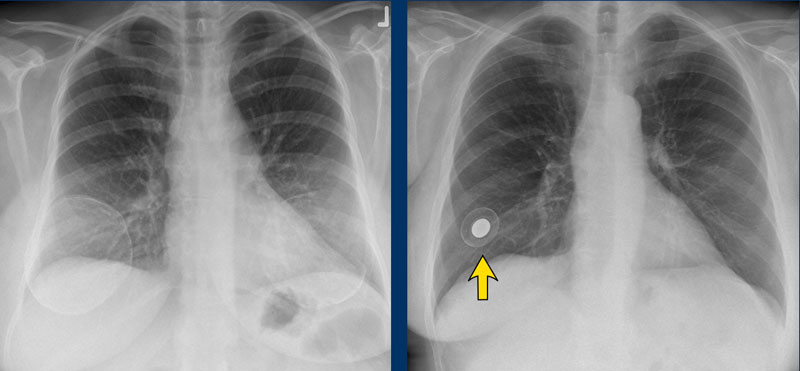

The chest film shows capsular calcifications in a medially displaced breast implant, which is not parallel to the breast contour.

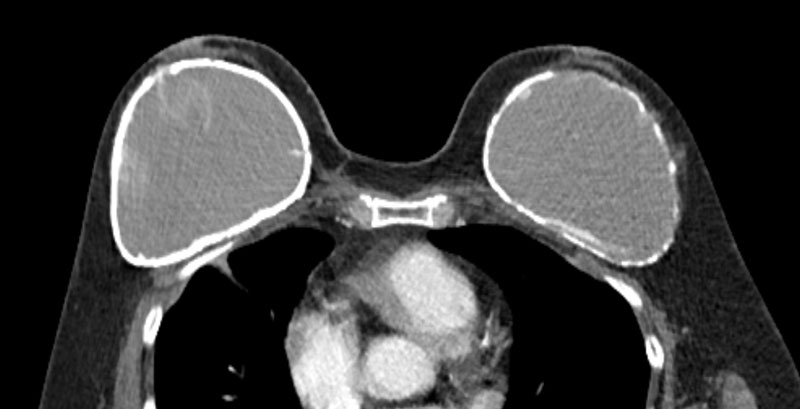

The CT of the same patient shows also calcifications at the posterior side not following the contour of the implant indicating intracapsular rupture (arrow).

An intact implant has a homogeneous grey internal density on CT with a surrounding thin more hyperdens envelope and capsule.

Location abnormalities and different types of fill valves can sometimes be seen.

This patient has a saline filled prosthesis with a low internal density.
A thin slightly hyperdens regular envelope is seen.

On CT different types of fill valves of breast implants can be seen.

Capsular calcifications are frequently seen and sometimes the Linguine sign (arrow).

In most cases the findings on CT will be inconclusive.

The left implant in this patient shows capsular calcifications, which are not located at the periphery and which are discontinuous.

Unclear whether this is an extracapsular rupture or whether there is a large effusion.

Same patient before and after prepectoral breast augmentation.
Especially prepectoral implants can reduce mammographic assessment.

Still mammography and 3D tomosynthesis can be well performed and in fact has the highest PPV for recognition of extra capsular silicone.
It also objectively detects changes in time, shows calcifications, can show surrounding fluid shadow and of course adds important findings in fibroglandular tissue.

Eklund technique

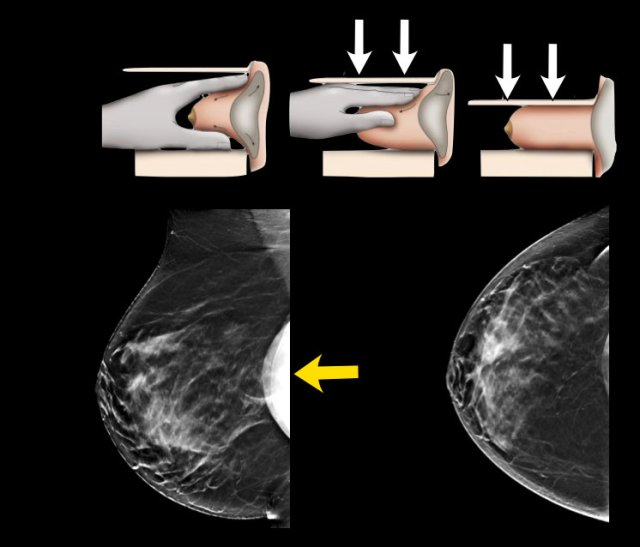

Special views can be performed such as the Eklund views.
By pushing the implant posteriorly and pulling the breast tissue anteriorly better visualization of the fibroglandular tissue can be achieved.

Tomosynthesis

Tomosynthesis can be very useful as in this case.
There is a mass on the lateral side, which is best seen on the  3D tomographic image.
Ultrasound guided biopsy was performed and this mass proved to be a fibroadenoma.

On this mammogram there were both capsular calcifications and atypical extracapsular calcifications.

Detail of the specimen showing mass and grouped calcifications.

Pathology: breast cancer grade 2, no special type (NST).

This woman has a saline filled implant and shows a discoid diaphragm, which is the fill valve.
There is a mass, which is more obvious on the tomosynthesis (image 56 out of 73).

It is a spiculated mass.
Pathology: infiltrating lobular carcinoma grade 2 and LCIS.

Another example of the value of tomosynthesis.

The tumor is best seen on the tomographic view.

Complications of implants

The oblique view of the right breast shows a deflated ruptured  Saline filled implant.

A normal saline filled implant with filling valve on the left.

In A there are prepectoral capsular calcifications of a previous inplant and a subpectoral prosthesis.

In B there is a situation after operative capsulectomy and replacing of the subpectoral breast implant.

Typical appearance of silicone outside of the capsule presenting as dense well deliniated masses outside the contour of the breast implant.

Silicone granulomas

Silicone granulomas remainig after removal of breast implant because of previous extracapsular rupture in 2013.

Silicone granulomas can manifest as masses with suspicious morphology and enhancement dynamics on breast MRI or with increased FDG uptake on PET CT.
They can present at the periphery of the prosthesis or in breast tissue after rupture.

The presence of silicone implants and awareness of the possibility of a rupture and formation of silicone granulomas may help in facilitating a correct diagnosis (ref).

Free silicone breast injections

This is an alternative form of breast augmentation, although it has serious adverse effects and is banned in many countries.

This patient from the Philipines presents with bilateral painful lumps in the breasts.

The massive densities in both breasts are the result of silicone intraglandular injections.

Continue with the MR...

MRI of the same patient showing free silicone as areas of high signal on silicone-only sequence.

Removal of thickened capsule

In this video first an incision is made in the thickened capsule.
The implant is subsequently removed through this incision.

Finally the thickened capsule is removed.
